Empty Container Handler / XEC-155/6
Click Image to Enlarge

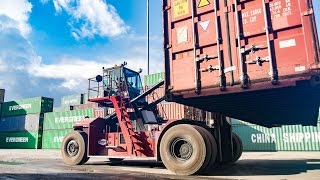

Taylor® XEC-155/6
The Taylor XEC-155/6 Dedicated Empty Container Handler is designed to handle 8.5-ft. containers stacked 6-High and 9.5-ft. containers stacked 5-High. This truck features a Heavy Duty Taylor designed side-pick spreader, 105-in. wheelbase, 173 HP Tier 4 Final diesel engine, and End-User diagnostics that allow the customer to customize operating parameters and troubleshoot most codes without the need for a service call. Taylor Big Red... Engineering the Ultimate Lift Truck. Common applications include, but not limited to, Port Operations, Stevedoring & Container Yards, Intermodal.
- Capacity: 15000 lbs / 6804 kg
- Capacity (MT): 7
- Load Center (in): 100 in. / 2540 mm
- Wheelbase (in): 150.0 in. / 3810 mm
- Engine: QSB6.7-C173 4F
- Transmission: TC-32 3-sp.
- Mast (ft/Type): 45 UV
- Carriage Att. (in/Type): 2040 ESP
- Forks (in):
- Brake Type: Hydraulic
- Volts: 24
- Tires: 12.00 x 20 - 24PR
Basic Truck Includes
- Cummins QSB6.7-C173 HP Tier 4 Final Diesel Engine
- Engine Equipped With Fuel / Water Separator
- Donaldson Dry-type Air Cleaner w/Safety Element & Restriction Indicator
- Muffler w/Stack Guard standard with Cummins Tier 4 Engines, optional with Tier 3 Engines
- Dana TC-32 3 speed powershift transmission
- Powertrain Protection System for engine and transmission
- Kessler D-81 Planetary Drive Axle with Wet Disc Brakes
- Taylor welded steel steer axle (single hydraulic cylinder design with heavy duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 12.00 x 20 - 24 PR bias pneumatic drive and steer tires
- Taylor Integrated Control System (TICS) with CANbus Technology with Diagnostics, through dash mounted 7 " diagonal full color touch screen display, Seat Belt Sequence Neutral Lock, Customer Ability to turn Accessory Functions On/Off, Power on Demand, Idle and Neutral Shutdown
- Two Heavy-duty Batteries with Battery Disconnect Switch
- 24-Volt Electrical System with 95 Amp Alternator and Reset Circuit Breakers
- LED worklights total 10, 2 at front on each side of cab, total 4, 2 rear facing mounted on back of cab, 2 front on mast, one low and one high and 1 On Either End of Attachment set for Twist Locks,
- In cab amber, green and red signal light system for twistlock operation, with additional set on TICS display
- Dual USB port in cab
- Lighted Instruments
- Step Lights, Two
- Hour Meter Mounted in Engine Compartment
- Electric Horn 118 Dba
- Keyswitch-actuated Amber Strobe Light
- Reverse-actuated backup alarm
- Forward actuated forward alarm
- Anti-restart Ignition Switch
- Seat Belt Sequence Neutral Lock
- Right Arm Rest Mounted Electric Joystick Operated Controls and Switch Controls,can be Adjusted to fit Operator
- Elevated Center, Rear Mount Operator, ANSI B56.1 FOPS Overhead Guard /Cab, 2 Full size doors, includes one 32,000 BTU heater, one circulation fan, front and rear windshield wipers with control switch's, front windshield washer, dome light, all glass tinted, door hold back latches with trip buttons
- Adjustable vinyl covered air ride suspension seat w/flip-down, adjustable-angle arm rests, and can be adjusted to fit operator, has left 15/ right 20 degree rotation
- Orange Seat Belt and OPS Switch seat
- Cab color black only
- Tilt Steering Wheel with forward, reverse, and neutral transmission roll shifter
- Rear View Convex Mirrors in Cab and on Chassis
- All welded Chassis, with Bolt-On Fuel and Hydraulic Tanks
- 24 volt electrical system with 95 amp alternator
- Auxiliary Drive Line Mounted Parking Brake mounted on Transmission
- Remote mounted hydraulic oil cooler
- Hydrostatic Power Steering
- 87 Gallon all welded hydraulic tank
- Full Flow Wire Mesh Strainers and 10 Micron Return Line Filters w/Replaceable Elements in Tank
- Parker Hydraulic Gear Type Pumps, fittings, hoses
- Accumulator in Lift Circuit
- 45' ULTRA-VU Telescopic Mast for stacking 5 high 9'6" empty containers and 6 high 8'6" empty containers
- 2040 ISO Container Handler Side Post Attachment with side shift, mechanical pile slope, and guide arms, all major replacement parts external mounted
Taylor International® provides Container Handler sales, parts, and service for Central and South America. Taylor Forklifts and Material Handling Equipment are designed, engineered, and manufactured in the United States of America. Industries such as Steel, Aluminum, Wood, Lumber, Concrete, Precast, Breakbulk, Intermodal, Ports, Rail and Stevedoring commonly use Taylor® Products.
